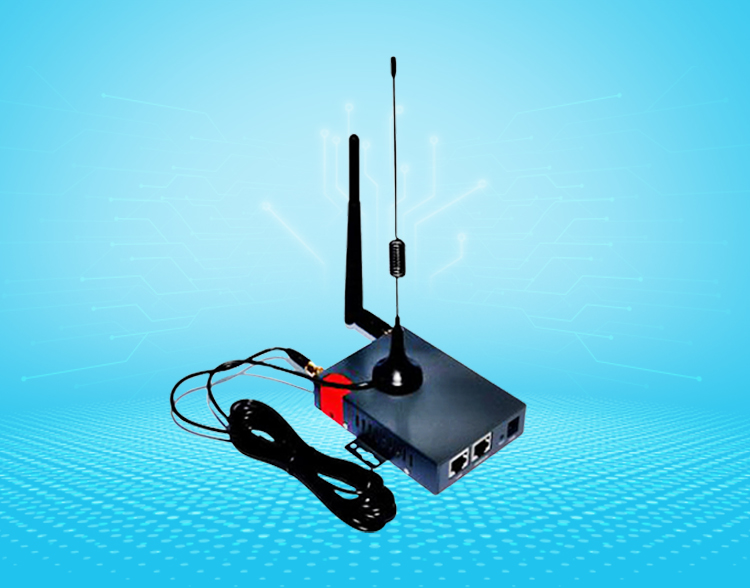

ADV20
Adv20 is the first offering from our extensive industrial router portfolio. It is perfectly curated with small to medium enterprises in mind. With both 3G and 4G connectivity options at hand, it is designed on a 32-bit processor architecture to be your most efficient networking powerhouse. It also comes equipped with a low power consumption mode that helps bring down the running costs further.
Model Specific Features -
- Speed up to 150mbps
- An instant over-voltage protection
- Dual SIM option
- The standard frequency range of 900/2100MHZ
Here’s the full set of specifications for Adv20 -
Wireless specification
| Description | Adv20 |
| Standard Bandwidth | ·150 Mbps, supports IEEE802.11b/g/n standard |
| Safety/ Security | ·Supports WEP, WAP, WPA2, WPS |
| Transmitted Power | ·16-17 dBm (11g), 18-20 dBm (11b), 15 dBm (11n) |
| Receive Sensitivity | ·<-72 dBm@ 54 Mpbs |
Wireless parameters
| Description | Adv20 |
| Receive Sensitivity | ·<-72 dBm@ 54 Mpbs |
| Frequency Range | ·5G FR1: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41,n48, n66, n71, n77, n78, n79 |
| ·4G LTE bands: 1-5, 7, 8, 12-14, 17-20, 25, 26, 28-30, 32, 34, 38-43, 46, 48, 66 and 71 | |
| ·3G WCDMA: 1, 9, 19 | |
| Bandwidth | ·MAX DL: 100Mbps |
| ·MAX UL: 50Mbps | |
| Transmitted Power | ·< 24 dBm |
| Receive Sensitivity | ·<-109 dBm |
Interface Type
| Description | Adv20 |
| LAN | ·1 LAN interface |
| ·Built-in electromagnetism insulation blocking | |
| ·Full Duplex, 10/100 Mbit/s | |
| WAN | ·1 WAN interface |
| ·Built-in electromagnetism insulation blocking | |
| Industrial Interface | ·1x RS485/RS232 port |
| ·Self-adaption MDI/MDIX | |
| Industrial light | ·WLAN |
| ·WAN | |
| ·LAN | |
| ·NET (RGB) | |
| Antenna Interface | ·3 standard SMT antenna port (WIFI/GPS 2 X 3G) |
| ·Characteristic impedance 50 ohms | |
| SIM/UIM | ·SIM/UIM 1.8V/3V auto detection |
| ·Single Sim | |
| Power Source | ·7.5V-36V (standard DC12V/1.5A), |
| ·Built-in power instant overvoltage protection | |
| USB | ·NA |
| GPIO | ·NA |
| Dimension |
Environment conditions
| Description | Adv20 |
| Operating temperature | ·-30°C~75°C |
| Storage temperature | ·-40°C~85°C |
| Operating Humidity | ·95% (Unfreezing) |
| Voltage range | ·DC 12 ~ 26V/1.5A |
