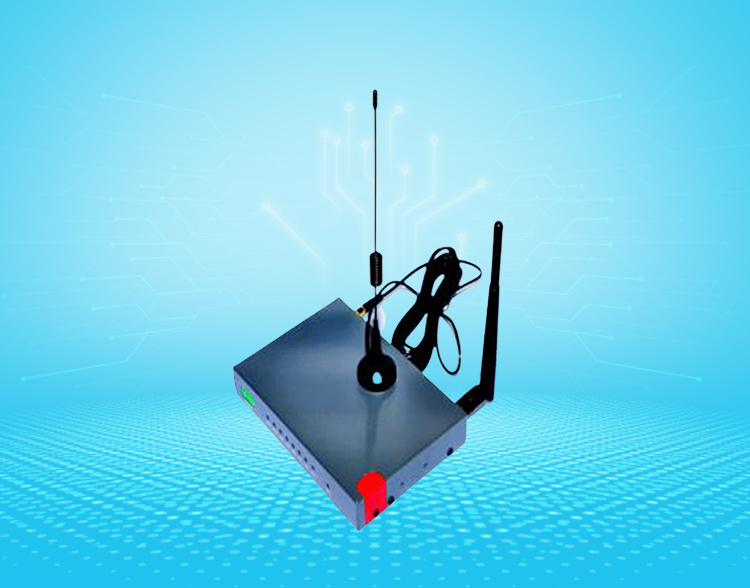

ADV50
Adv50 is the third offering from our extensive industrial router portfolio. This one is capable of running entire diagnosis algorithms to help you pinpoint the faults in the network connections. This helps you stay one step ahead of the problems, as you’ll be seeing them coming a mile away. It also supports multiple bands and frequencies for 4G LTE and GSM, along with backward compatibility for WCDMA networks.
Model Specific Features -
- Speed up to 150mbps
- Dual SIM option
- The standard frequency range of 900/2100MHZ
- Support for 1WAN+1LAN, for integration with our Network Management System (NMS). LAN port also supports electromagnetism insulation blocking.
Here’s the full set of specifications for Adv50 -
Wireless specification
| Description | Adv50 |
| Standard Bandwidth | ·150 Mbps, supports IEEE802.11b/g/n standard |
| Safety/ Security | ·Supports WEP, WAP, WPA2, WPS |
| Transmitted Power | ·16-17 dBm (11g), 18-20 dBm (11b), 15 dBm (11n) |
| Receive Sensitivity | ·<-72 dBm@ 54 Mpbs |
Wireless parameters
| Description | Adv50 |
| Receive Sensitivity | ·<-72 dBm@ 54 Mpbs |
| Frequency Range | ·5G FR1: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41,n48, n66, n71, n77, n78, n79 |
| ·4G LTE bands: 1-5, 7, 8, 12-14, 17-20, 25, 26, 28-30, 32, 34, 38-43, 46, 48, 66 and 71 | |
| ·3G WCDMA: 1, 9, 19 | |
| Bandwidth | ·MAX DL: 100Mbps |
| ·MAX UL: 50Mbps (Category 3, MIMO) | |
| Transmitted Power | ·<24 dBm |
| Receive Sensitivity | ·<-109 dBm |
Interface Type
| Description | Adv50 |
| LAN | ·4 LAN interface |
| ·Built-in electromagnetism insulation blocking | |
| ·Full Duplex, 10/100 Mbit/s | |
| WAN | ·1 WAN/LAN interface |
| ·Built-in electromagnetism insulation blocking | |
| Industrial Interface | ·1x RS485/RS232 port |
| ·Self-adaption MDI/MDIX | |
| Industrial light | ·WLAN |
| ·WAN | |
| ·LAN | |
| ·NET1 (RGB) | |
| ·NET2 (RGB) | |
| Antenna Interface | ·3 standard SMT antenna port (WIFI/GPS 2 X 3G) |
| ·Characteristic impedance 50 ohms | |
| SIM/UIM | ·SIM/UIM 1.8V/3V auto detection |
| ·Support Quad Sim | |
| Power Source | ·7.5V~30V (standard DC 12V/1.5A) |
| ·Built-in power instantaneous overvoltage protection and opposite connection protection | |
| USB | ·NA |
| GPIO | ·NA |
| Dimension |
Environment conditions
| Description | Adv50 |
| Operating temperature | ·-30°C~75°C |
| Storage temperature | ·-40°C~85°C |
| Operating Humidity | ·95% (Unfreezing) |
| Voltage range | ·DC 5 ~ 26V/1.5A |
